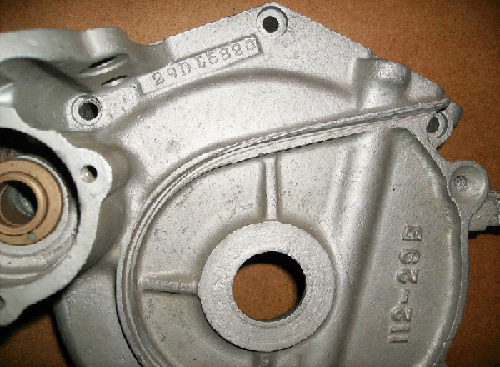

Page 2-3: In the second column, first paragraph, the serial number should read 29DL5820



Page 2-29: In the second column, first paragraph, the last sentence should read the cover is secured to the right engine case with fourteen #056 screws.

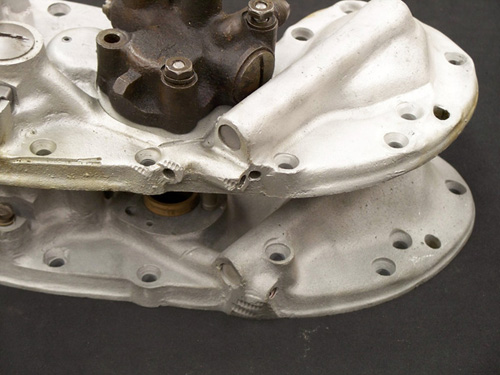

Page 2-30: In the first column, first paragraph, the last sentence should read "The cover is secured to the right engine case with thirteen #056 screws and one #1523-32 screw which is the same as that used to secure the generator. The gear cover casting was changed from 1933 to 1934 which required the use of one longer screw. #1523-32 screw is not listed in any Spare Parts book as a gear cover screw, but later as a generator mounting screw."

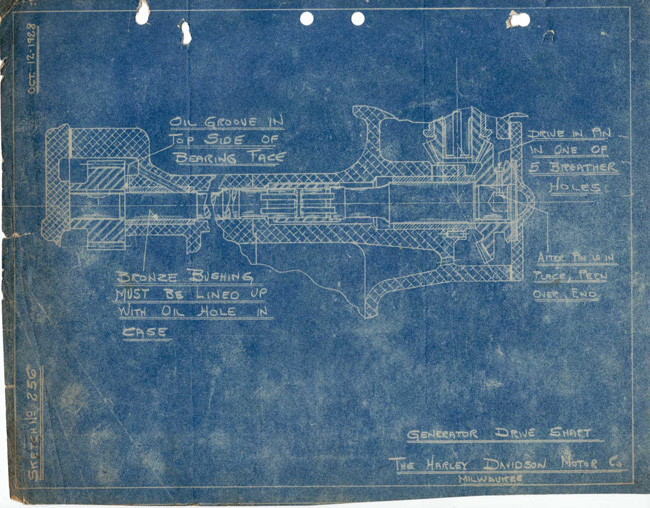

Page 2-64: The beginning of page 2-64 discusses a Shop Dope Service Bulletin to dealers discussing how to install a right side generator drive shaft bushing in early 1929 engine cases. The blueprint below shows the 2-piece generator drive shaft with the new right side bushing to be used in later engine cases. The back of the blueprint was stamped "Nov. 13, 1928" with W.S. Harley's approval. Photo courtesy Danny Lim and Perry Ruiter



Page 2-69: The 2 photos at the bottom left of the page that identify the drive shaft bevel gear as #1536-29 should read #1536-31.

Page 2-73: The photo at the top left of page and the first paragraph identifies end thrust washer as #1536-29. This should read #1539-29.
